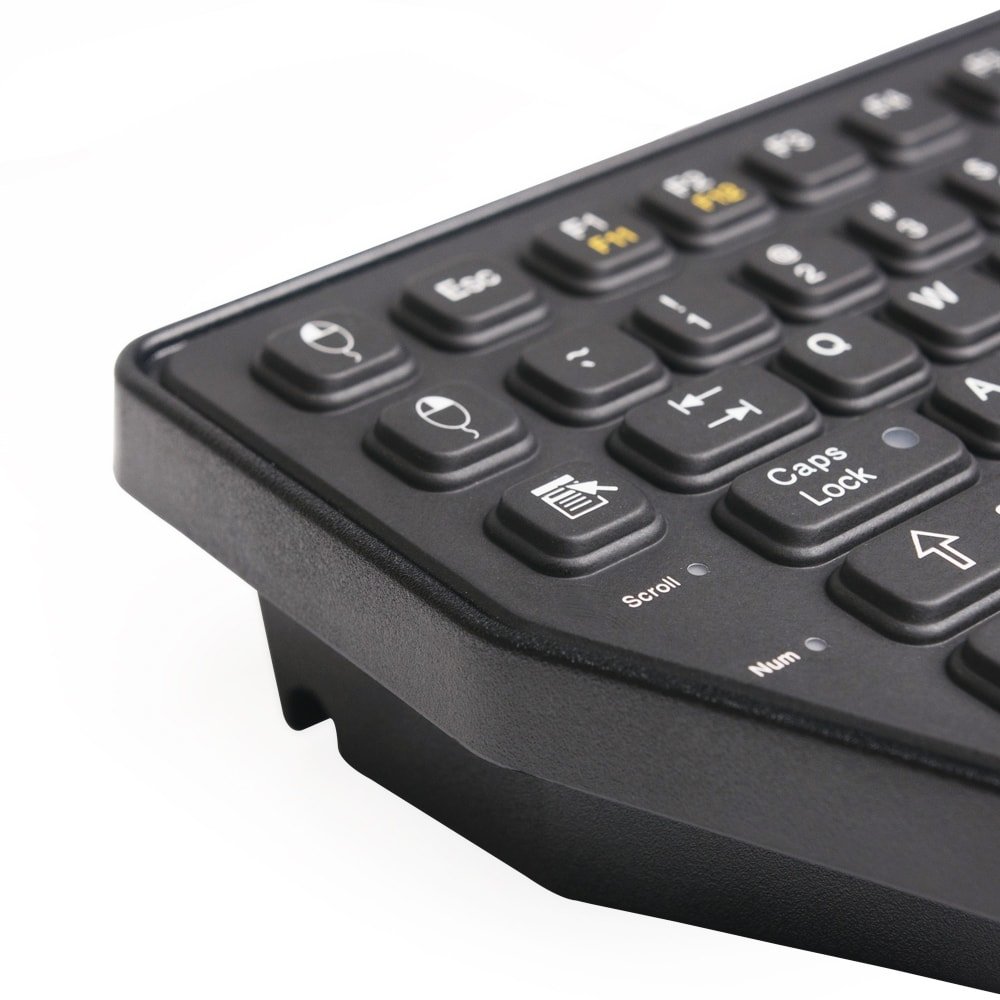

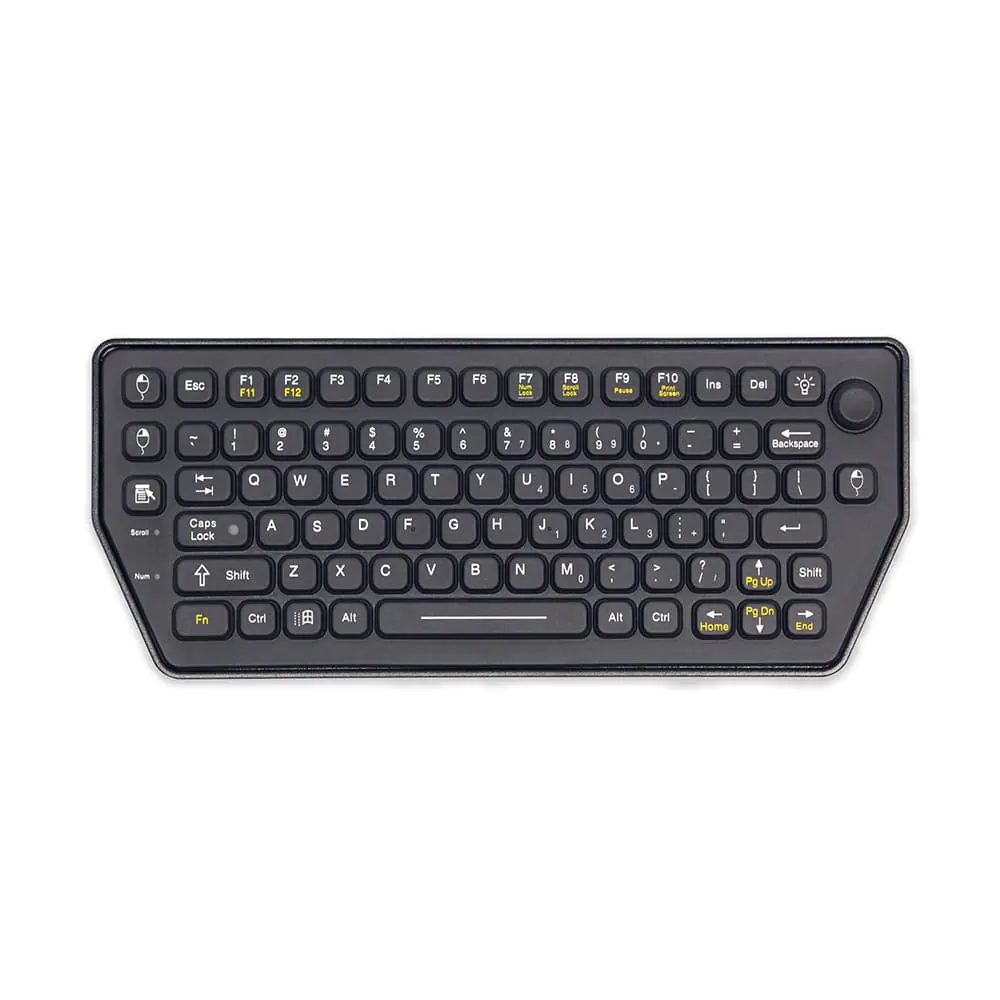

SLK-79-FSR


Ultra Compact Backlit Rugged Keyboard with Force Sensing Resistor

The SLK-79 has been designed for those mobile applications when a small-footprint keyboard may come in handy.

Main Features

  • Ultra-Small Footprint Design
  • Integrated Red LED Backlighting
  • Integrated Force Sensing Resistor
  • USB and PS2 Configurations Available
  • Various Keyboard and Language Layout Options


iKey

Request A Quote


* Required Fields

Add Items to Cart

Description

Details

The iKey SLK-79-FSR has been designed for those mobile applications when a small-footprint keyboard may come in handy. Featuring an integrated Force Sensing Resistor pointing device with dual left-click capability, the SLK-79-FSR offers a large amount of functionality in an ultra-small package. For working in low-light environments, the SLK-79-FSR features the added convenience of backlit keys. Like other keyboards in the iKey line, the SLK-79-FSR features sealed industrial silicone rubber keypads, as well as robust ABS polycarbonate cases.

Technical Specifications

Technical Specifications

SKU SLK-79-FSR
Manufacturer iKey
Country of Manufacture United States
IP Rating IP66
Number Of Keys 79
Function Keys 12 Keys
Key Material Silicone Rubber
Pointing Device Force Sensing Resistor
Backlight Red
Case Material ABS Polycarbonate
Mounting Options Desktop
Interface Options PS2, USB
Shock 3 x 11 ms pulses of 50g on each of 3 axes
Cable LENGTH: 3 feet (0.91 meters) DESIGN: "Y" PS/2 Cable (providing separate keyboard and mouse connections), or Single-Cable USB
Vibration POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
Power PS/2: KEYBOARD: 200mA@5V (from Keyboard port) POINTER: 35mA@5V (from Mouse port) USB: 235mA@5V (from CPU port)
Flammability PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO
Compatibility PS/2 KEYBOARD/HULAPOINT: All Windows Operating Systems USB KEYBOARD/HULAPOINT: All Windows and Macintosh OS
Temperature Range STORAGE: -40C to +70C (-40F to +158F) OPERATING: -20C to +60C (-4F to +140F)
Weight 1.00 lbs +/- 0.10 lbs (0.45 kg +/- 0.05 kg)
Warranty 1 Year Limited Warranty
Humidity 100% Humidity Resistant
Dimensions 9.27" x 3.87" x 1.00" (w-h-d) 235.5mm x 98.3mm x 25.4mm
Certifications IP Rated, NEMA 4X, CE UL60950, FCC Part 15 Class B
Model Number(s)

SLK-79-FSR-PS2: With PS/2 cable
SLK-79-FSR-USB: With USB cable

Lifespan Greater Than 10 million cycles

Applications

The iKey SLK-79-FSR Keyboard is used in a wide range of industries for a broad range of applications. The most common applications for the SLK-79-FSR are listed below-

Typical Applications for the iKey SLK-79-FSR Keyboard

  • Commercial
  • Field Services
  • Industrial
  • Mobile Work force
These are just some of the applications for the iKey SLK-79-FSR in various industries. The potential applications extend further than those shown above. For further information about the iKey SLK-79-FSR Keyboard or to check if the product is suitable for you application, please do not hesitate to contact us.

Downloads

Warranty

The iKey SLK-79-FSR Keyboard has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless a different period is specified in an agreement between FB Peripherals and the customer)

To obtain service under this warranty, the warranty-eligible product, iKey SLK-79-FSR Keyboard, must be presented to FB Peripherals Limited in the UK.

For further information on the above or for repairs and service outside the the scope of warranty, please visit the Warranty and Repair section of our webiste.
